M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting

Name: M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
Brand: CNLINKO
Price: 3.05 USD

Quality M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting for sale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP-16-C03PE-01-001

MOQ : 2

Price : $3.05-3.56

Type : Power, Waterproof Connector

Application : Industrial

Gender : Male and Female

Cable Specification : 1.0mm2-1.5mm2/18-16AWG

Diameter range : OD3-7MM

Contact diameter x number : OD1.5*3

Rated Current : 10A

Operating voltage : 400V

Feature : Easy Installation

Package : Carton Box

Contact Now

M16 3 Pin Male Female plug socket IP68 Standard Waterproof Wire Connector for LED Lighting

Features:

1: With multi-core(2-9 core) design to fit with different industrial needs.

2: Design snap lock ensures stable and security firm.

3: Humanization design achieved blind operation.

4: Both soldering and crimping are available.

5:Socket and internal made of zinc alloy,with well protected electromagnetic and radio frequency interference.

6: Gold-plating;high strength corrosion resistance and electrical conductivity.

7: Shell made of material PBT,stable electrical performance,high strength and resistance to pressure,high temperature resistance,anti-explosion,anti-corrosive.

8: Both cable connector to cable connector and cable connector to panel mounting are available.

Product Description

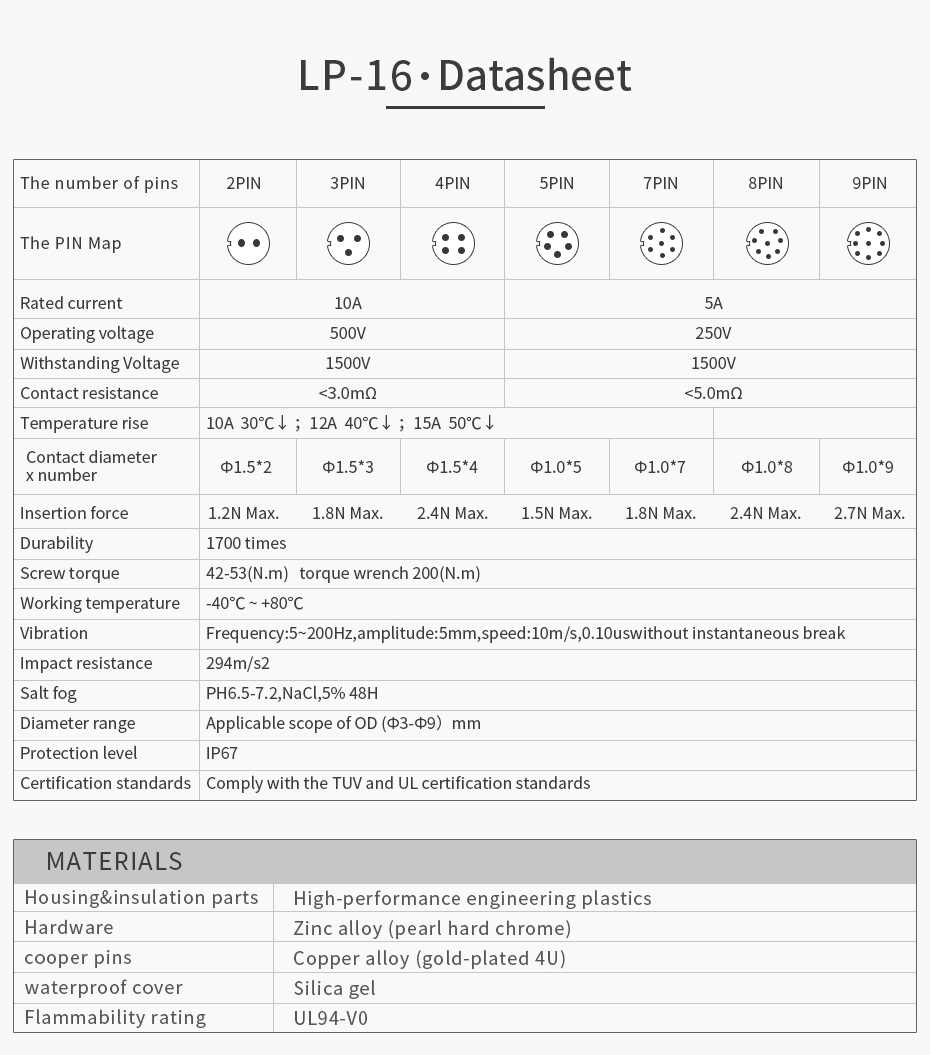

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	1.0-1.5mm² /18-16AWG
Diameter range	Φ3mm ~Φ8.5mm
Contact diameter×Qty	Φ1.5×3
Current rating(A)	10A
Temperature rise	10A contact temperature below 30℃ 12A contact temperature below 40℃ 15A contact temperature below 50℃
Operating voltage(AC.V.rms)	400V
Withstanding voltage(AC.V)1min	2500V
Contact resistance	<2.5mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
shell & Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

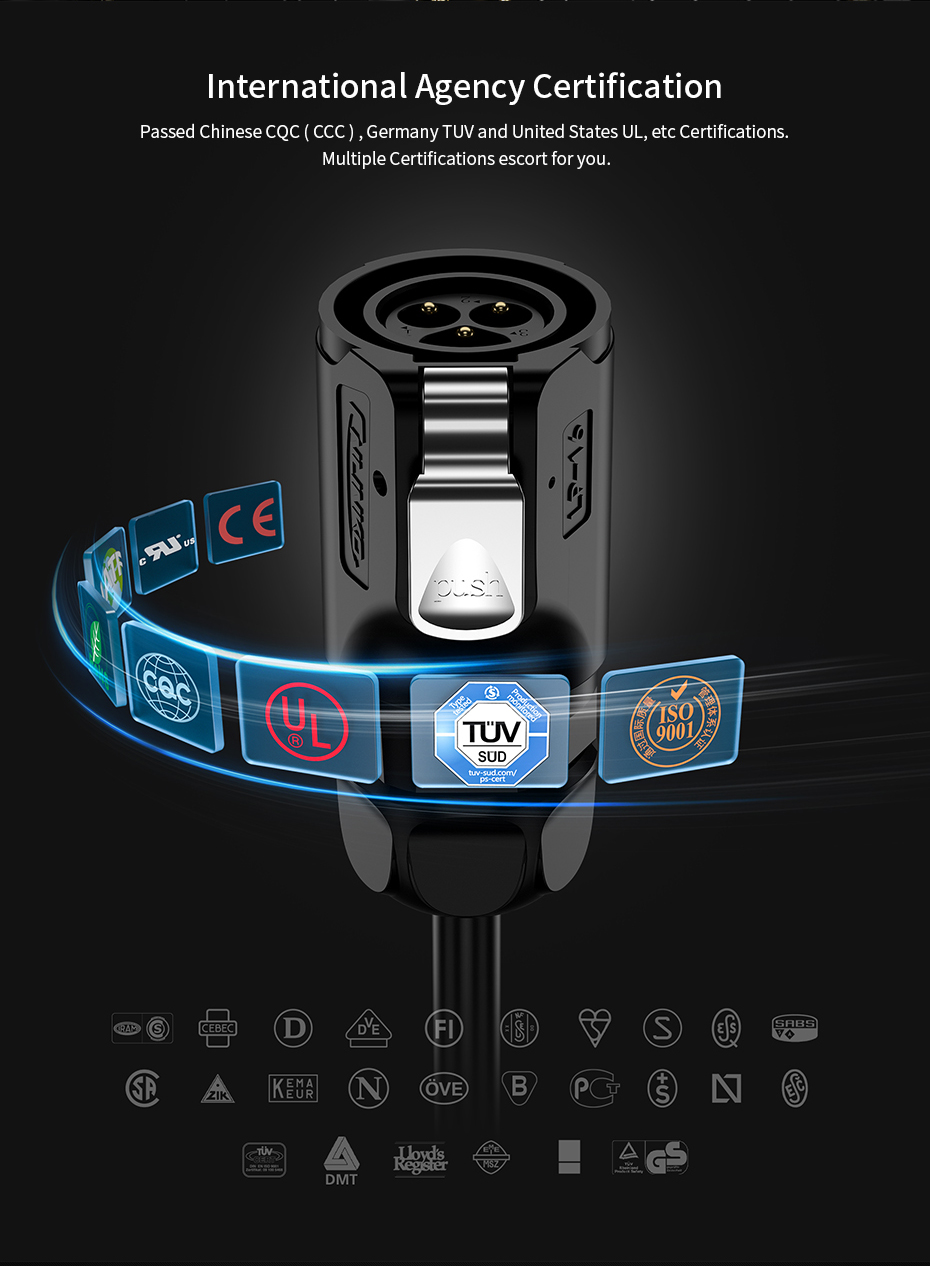

Certifications

M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
